CAT excavator size guide: Choosing the right machine
EquipmentSeptember 19, 2025

Caterpillar excavators are among the most recognized and trusted machines in the construction, utility, and mining industries. With dozens of models across multiple size classes, CAT’s lineup spans everything from compact minis designed for backyard projects to massive machines built for heavy-duty earthmoving.
Choosing the right excavator size matters. A machine that’s too small won’t deliver the productivity you need, while one that’s too large could drive up transport costs and create challenges on tighter job sites. That’s why contractors and fleet managers pay close attention to specs like operating weight, horsepower, and digging depth before making a purchase.
At Ritchie Bros., we see CAT excavators in every size class in our auctions and online marketplaces. Whether it’s a popular CAT 305 mini or a heavy-duty CAT 349, demand is consistently high because of Caterpillar’s reputation for durability and performance. For accurate technical details, RitchieSpecs is widely trusted by equipment professionals as a reliable reference point.
This guide breaks down CAT excavator sizes by class, explains the key specs to consider, and highlights popular models with their core specifications.
Mini excavators (CAT 303 – CAT 306)

Mini excavators, often called compact excavators, are the smallest in CAT’s lineup. They’re designed for tight spaces, landscaping, utility installation, and residential projects. These machines are easy to transport on a trailer and are fuel-efficient, making them a favorite for contractors who need flexibility without sacrificing performance.
Popular Models and Specs (Mini Class)
Model | Operating Weight | Net Power | Max Dig Depth |
CAT 303 | ~7,000 lbs | ~23 HP | ~9 ft |
CAT 304 | ~9,000 lbs | ~40 HP | ~11 ft |
CAT 305 | ~11,000 lbs | ~45 HP | ~11 ft |
CAT 305.5 | ~12,000 lbs | ~44 HP | ~12 ft |
CAT 306 | ~15,800 lbs | ~55 HP | ~13.5 ft |
Why choose a CAT mini excavator?
- Tight job sites: Their compact footprint allows operators to maneuver around buildings, fences, and utilities.
- Transportability: Most minis can be hauled with a pickup and trailer without special permits.
- Versatility: With the right attachments, minis can dig, grade, drill, and even demolish small structures.

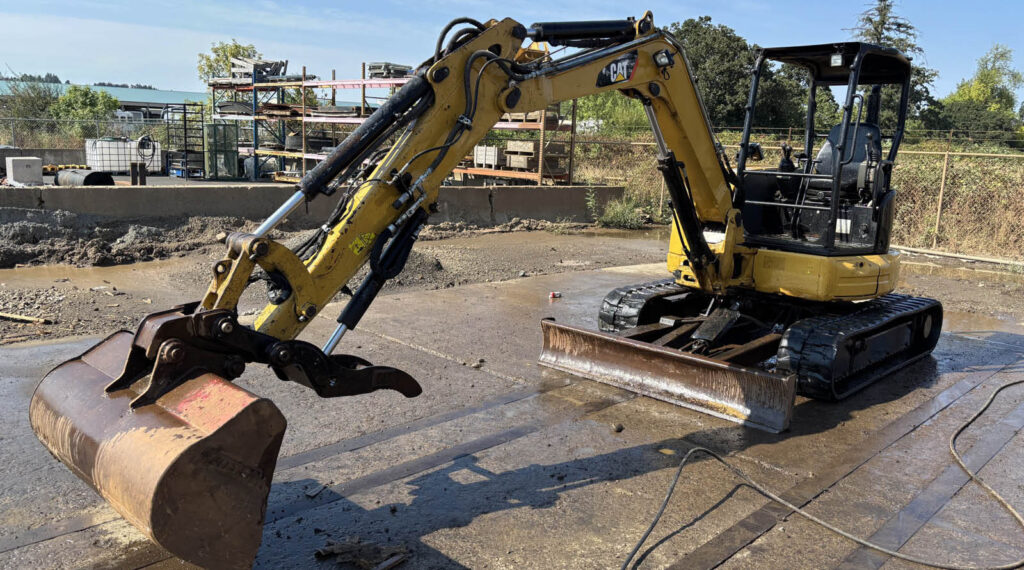

For contractors working in urban areas or handling light utility projects, a model like the CAT 305 offers an ideal balance of size and capability.
Small excavators (CAT 308 Series)

When you need more power and reach than a mini but still want a transportable machine, small excavators are the next step up. CAT’s 308 series is one of the most popular in this category.
Popular Models and Specs (Small Class)
Model | Operating Weight | Net Power | Max Dig Depth |
CAT 308 | ~20,000 lbs | ~70 HP | ~13.5 ft |
CAT 308B | ~18,500 lbs | ~63 HP | ~12.8 ft |
CAT 308E | ~19,000 lbs | ~65 HP | ~13.1 ft |
Why choose a CAT small excavator?
- More lifting power: Small excavators can handle heavier buckets and attachments.
- Extended reach: Useful for deeper trenching or foundation work compared to minis.
- Still manageable: They remain relatively easy to transport compared to medium or large models.
The CAT 308 is a go-to choice for general contractors who need a machine versatile enough for utility installation, small commercial projects, or roadwork.
Medium excavators (CAT 310 – CAT 320)

Medium excavators are the backbone of many construction fleets. They’re large enough to handle major infrastructure projects but not so big that transport becomes a logistical challenge. Machines like the CAT 315 and CAT 320 are widely used because they balance power, reach, and mobility.
Popular Models and Specs (Medium Class)
Model | Operating Weight | Net Power | Max Dig Depth |
CAT 310 | ~22,500 lbs | ~70 HP | ~17 ft |
CAT 315 | ~34,000 lbs | ~108 HP | ~19 ft |
CAT 320 | ~48,000 lbs | ~162 HP | ~22 ft |
Why choose a CAT medium excavator?
- Versatility: Suitable for road building, forestry, utility work, and general earthmoving.
- Productivity: Stronger hydraulics and deeper digging capacity than small models.
- Balanced transport: While larger than minis, medium excavators are still manageable to haul with the right lowboy trailer.

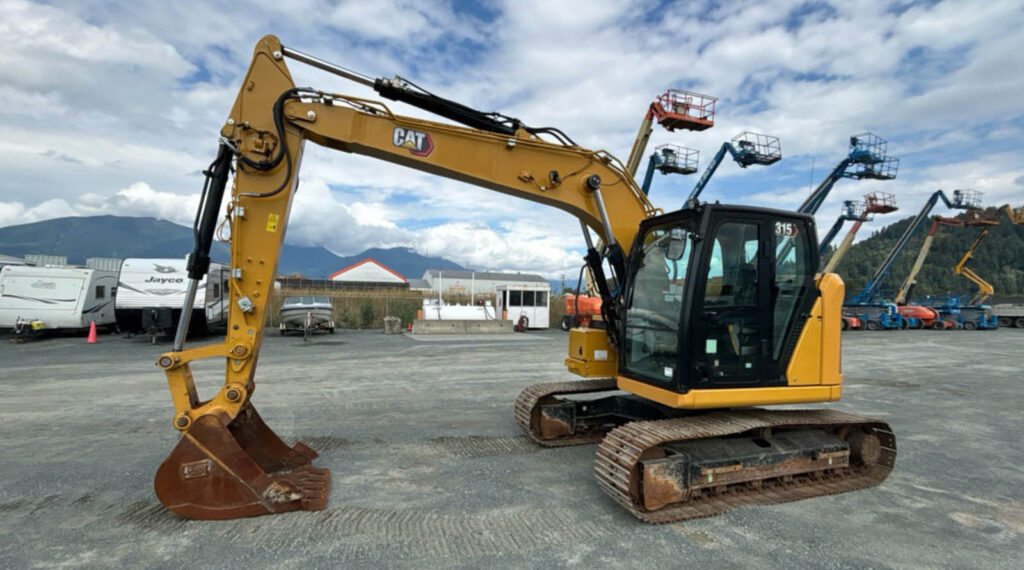

The CAT 315 stands out as a popular option because it provides enough power for heavy lifting but is compact enough for tighter jobsites.
Large excavators (CAT 336 – CAT 374)

Large excavators are designed for heavy-duty operations such as mining, quarrying, and large-scale earthmoving. They deliver maximum horsepower, digging depth, and reach, but require more planning when it comes to transport and operating costs.
Popular Models and Specs (Large Class)
Model | Operating Weight | Net Power | Max Dig Depth |
CAT 336 | ~80,000 lbs | ~311 HP | ~24 ft |
CAT 349 | ~105,200 lbs | ~424 HP | ~25 ft |
CAT 374 | ~158,000 lbs | ~484 HP | ~27 ft |
Why choose a CAT large excavator?
- Heavy lifting: Perfect for rock quarries, pipeline work, and major infrastructure projects.
- Durability: Built to withstand demanding environments and high-hour usage.
- Long reach: Larger buckets and extended boom options improve efficiency on large jobsites.

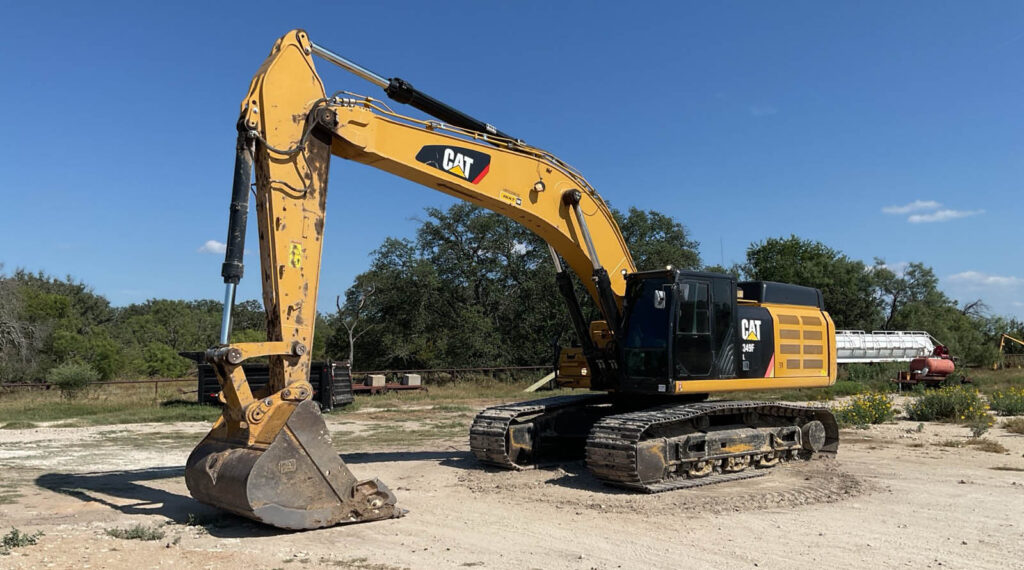

The CAT 349 is one of the most recognized models in this class, regularly appearing at Ritchie Bros. auctions worldwide.
Excavator types beyond size
In addition to size classes, Caterpillar also produces specialized excavator types:
- Long Reach Excavators: Designed for dredging, riverbank stabilization, and other applications requiring extended reach.
- Wheeled Excavators: Ideal for urban jobsites, where rubber tires provide mobility on paved roads without damaging surfaces.
- Demolition Excavators: Featuring straight booms or ultra-high reach designs for tearing down tall structures safely.
These specialized models address niche applications and often command strong resale demand due to their unique capabilities.
Key specs to compare
When evaluating CAT excavators, buyers often focus on a few core specifications:
- Operating Weight: Impacts lifting capacity and determines transport requirements.
- Net Power (Horsepower): Affects cycle times and overall productivity.
- Digging Depth: Critical for trenching, foundation work, and underground utilities.
- Dimensions: Travel width, height, and transport length can affect access to tight jobsites.
For detailed Caterpillar specifications, many contractors rely on RitchieSpecs to verify accurate technical data before making purchase decisions.
Buyer considerations
Beyond size and specs, contractors and other buyers should think about a few practical factors before and after acquisition of an excavator:
- Transport Regulations: Larger machines like the CAT 349 often require oversize load permits.
- Attachments: Excavators can be fitted with buckets, thumbs, augers, hammers, and more — making compatibility essential.
- Fuel Efficiency & Emissions: Tier 4 Final-compliant machines are increasingly important for regulatory compliance and cost control.
- Resale Value: Caterpillar machines hold strong resale demand, especially models with service history and lower operating hours.
These factors play just as big a role as specs when it comes to long-term ownership value.
Conclusion
Caterpillar offers one of the most extensive excavator lineups in the industry, ranging from compact 3-ton minis to 150,000-lb mining machines. Choosing the right size comes down to matching horsepower, operating weight, and digging depth to the demands of your jobsite.
For accurate specs on models like the CAT 305, 308, 315, and 349, RitchieSpecs remains an industry-trusted source. And for buyers and sellers alike, Ritchie Bros. provides access to one of the largest marketplaces of CAT excavators worldwide.
Whether you’re a contractor looking for your next workhorse or a fleet manager planning long-term investments, understanding CAT excavator sizes is the first step to making the right choice.
